SIGNATURE PRODUCTS

“EC Fans” : High Efficiency, High performance

Best in efficiency class EC fans in market with low heat emission

High Efficiencies even at part loads: Efficient performance at any rotating speed of the fan. Our pricing is more attractive that plug fans with VFDs

On board soft starter results in lower energy demand during start-up in comparison with other fans, We have integration capability with 0-10V, PWM & RS 485 controller.

Capability of connecting/creating a fan wall, which can result in large CFM capability at high static as well.

Product Range

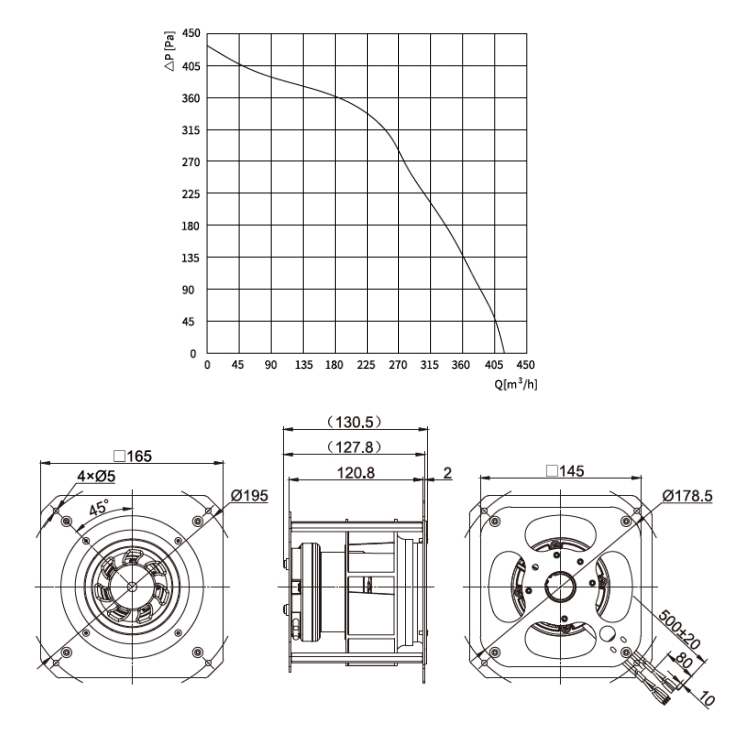

“EC Fans” : 133 mm plug fan

Parameter Value
Model AK-EC-133
Speed Control 0-10V DC/PWM
Motor input power (W) 53
Impeller Material Aluminum alloy / PA6+GF
Type of protection IP55
Insulation class B
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

products
Product Range

“EC Fans” : 175 mm plug fan

Parameter Value
Model AK-EC-175
Speed Control 0-10V DC/PWM
Motor input power (W) 85
Impeller Material Aluminum alloy / PA6+GF
Type of protection IP55
Insulation class B

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

Product Range

“EC Fans” : 190 mm plug fan

Parameter Value
Model AK-EC-190
Speed Control 0-10V DC/PWM
Motor input power (W) 170
Impeller Material Aluminum alloy / PA6+GF
Type of protection IP55
Insulation class B
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

products
Product Range

“EC Fans” : 220 mm plug fan

Parameter Value
Model AK-EC-220
Speed Control 0-10V DC/PWM
Motor input power (W) 168
Impeller Material Aluminum alloy / PA6+GF
Type of protection IP55
Insulation class B

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

Product Range

“EC Fans” : 225 mm plug fan

Parameter Value
Model AK-EC-225
Speed Control 0-10V DC/PWM
Motor input power (W) 168
Impeller Material Aluminum alloy / PA6+GF
Type of protection IP55
Insulation class B
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

products
Product Range

“EC Fans” : 250 mm plug fan

Parameter Value
Model AK-EC-250
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 750
Impeller Material Aluminum alloy
Type of protection IP55
Insulation class F

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

Product Range

“EC Fans” : 280 mm plug fan

Parameter Value
Model AK-EC-280
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 1100
Impeller Material Aluminum alloy
Type of protection IP55
Insulation class F
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

products
Product Range

“EC Fans” : 310 mm plug fan

Parameter Value
Model AK-EC-310
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 1100
Impeller Material Aluminum alloy
Type of protection IP55
Insulation class F

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

Product Range

“EC Fans” : 355 mm plug fan

Parameter Value
Model AK-EC-355
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 1100
Impeller Material Aluminum alloy
Type of protection IP55
Insulation class F
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

products
Product Range

“EC Fans” : 400 mm plug fan

Parameter Value
Model AK-EC-400
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 1100
Impeller Material Aluminum alloy
Type of protection IP55
Insulation class F

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

Product Range

“EC Fans” : 400 mm plug fan

Parameter Value
Model AK-EC-400-B
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 2700
Impeller Material Aluminum alloy
Type of protection IP55
Insulation class F
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

products
Product Range

“EC Fans” : 450 mm plug fan

Parameter Value
Model AK-EC-450
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 1100
Impeller Material Aluminum alloy
Type of protection IP55
Insulation class F

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

Product Range

“EC Fans” : 500 mm plug fan

Parameter Value
Model AK-EC-50130
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 4300
Impeller Material Aluminum alloy
Type of protection IP55
Insulation class F
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

products
Product Range

“EC Fans” : 500 mm plug fan

Parameter Value
Model AK-EC-500-B
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 5600
Impeller Material Aluminum alloy
Type of protection IP54
Insulation class F

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

Product Range

“EC Fans” : 560 mm plug fan

Parameter Value
Model AK-EC-560-A
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 3800
Impeller Material Aluminum alloy
Type of protection IP54
Insulation class F
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

products
Product Range

“EC Fans” : 560 mm plug fan

Parameter Value
Model AK-EC-560-B
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 5570
Impeller Material Aluminum alloy
Type of protection IP54
Insulation class F

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections

Product Range

“EC Fans” : 630 mm plug fan

Parameter Value
Model AK-EC-630-A
Speed Control 0-10V DC/PWM/RS 485
Motor input power (W) 3900
Impeller Material Aluminum alloy
Type of protection IP54
Insulation class F
products

Note : Please not the graphs in this presentation are representative and selections should not be made based on these charts. Please contact your Akron salesperson for appropriate selections
